CS325 Compiler Design

Missed…

Part 1 Lexical Analyzer (Lexing)

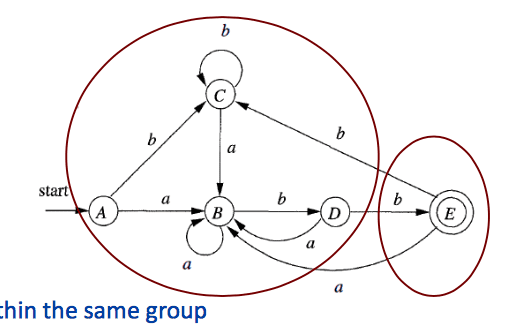

Given $D$ states in the DFA partition the states into two groups – $F$ and $S-F$ , the accepting states and the nonaccepting states. Denote this initial partitioning as $P = F$ , $S-F$ .
Let new partitioning $P_{new} = P$
For each group $G$ in $P_{new}$
partition into subgroups such that two states $s$ and $t$ are in the same subgroup if and only if for all input symbols $a$

Context free grammars (CFGs) – formal mechanism for
- specifying the syntax of the source language and
- a systematic method of determining membership in this formally specified language
- we use context-free grammars to specify the grammatical structure of programming languages.
Algorithms for doing this:
- Top-down parsing – $LL(1)$ and recursive descent parsers.
- Bottom-up parsing – $LR(1)$ parsers, canonical $LR(1)$ parsers, LALR parser.

Regular expressions are not sufficiently powerful to represent context-free structures. It doesn’t understand recursion, for example.

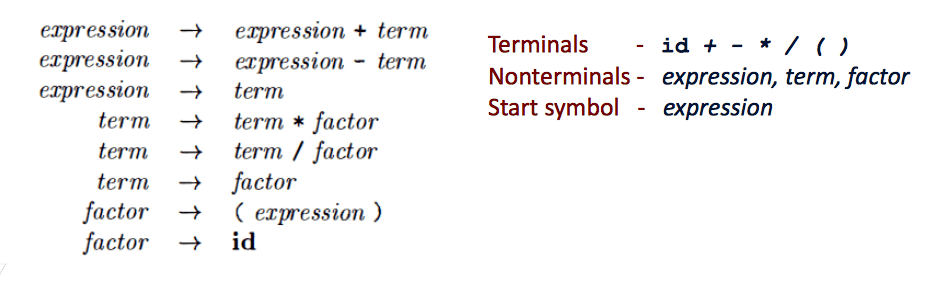

$T$ – A set of terminal symbols
$NT$ – A set of nonterminals
$S$ – A designation of one of the nonterminals as the start symbol
$P$ – A set of productions, where each production consists of a nonterminal, called the head or left side of the production, an arrow and a sequence of terminals and/or nonterminal, called the body or right side of the production.

<SheepNoise> ::= baa <SheepNoise>
               | baa

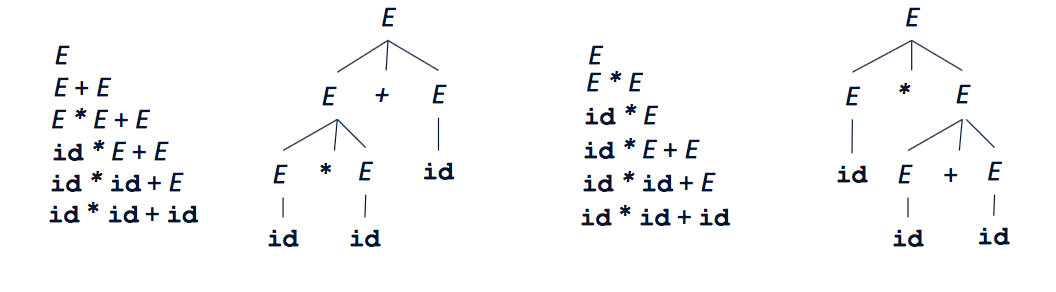

Consider the grammar: $E \rightarrow E + E | E \ast E | (E) | \text{id}$

Now consider the input: id * id + id

This input can be derived in two different ways:
